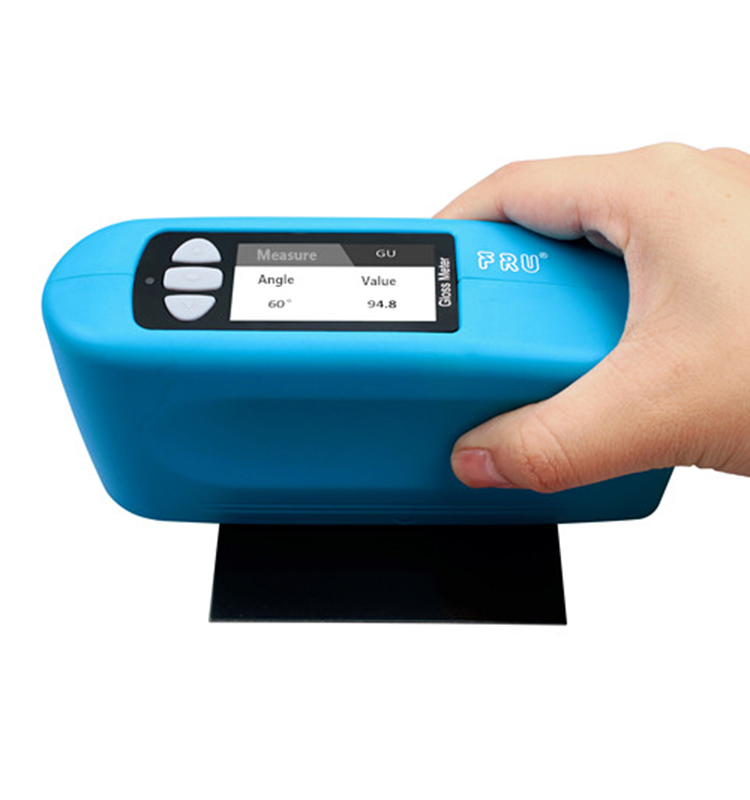

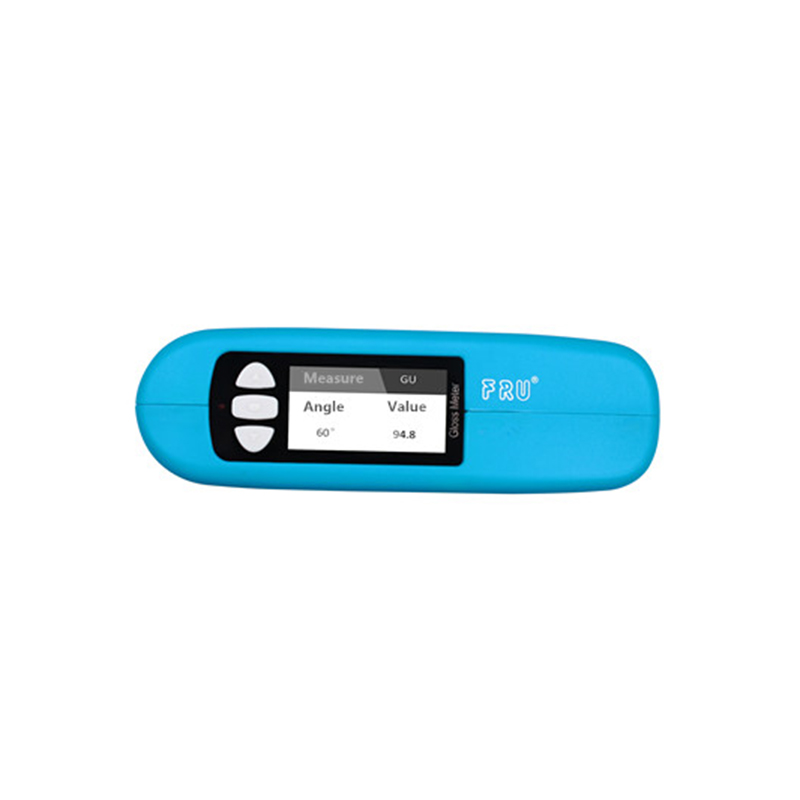

WG60T(for low glossy)

WG60T gloss meter is produced according to the national verification regulation of

JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.

It is mainly used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, more stable performance, more durable, more comfortable;



Gloss Meter WG60T Function Description:

(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.

(2) Manually entering standard samples gloss data;

(3) Humanized design, good man-machine communication interface;

(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;

(6) Data browsing and viewing function;

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;

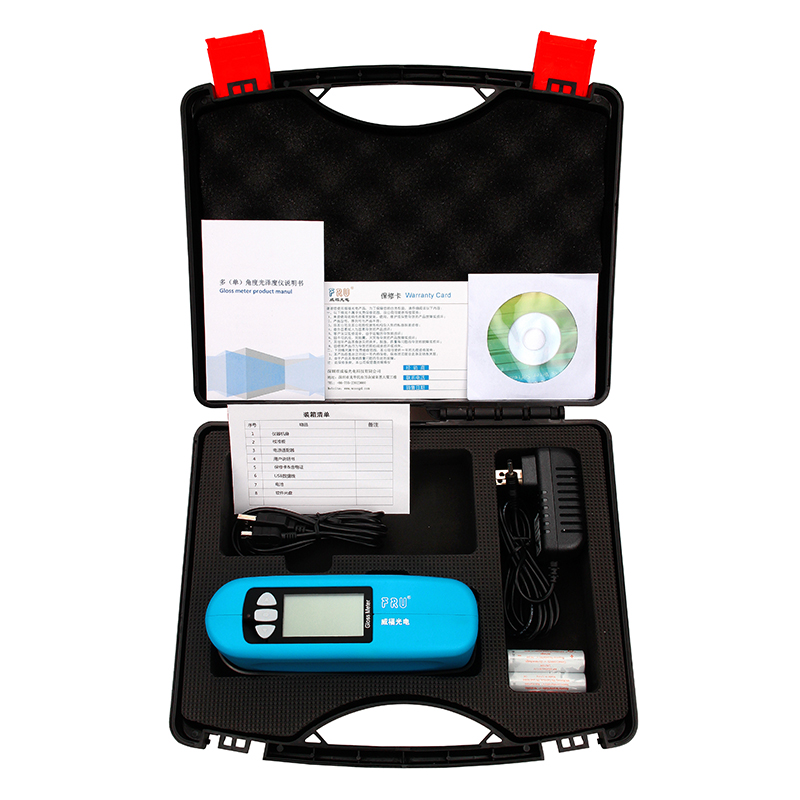

Attachment Description

(1) Power adapter: standard + 5V, 2A external power supply;

(2) Standard board: provide calibration criterion.





WG60T Specification

Specification	Unit	Single Gloss Meter
Measuring Angle	degree	60°
Measuring Range	GU	60°: 0-200
Measuring Spot	mm	60°: 9x15
Division Value	GU	0-1000: 0.1
Repeatability	GU	0-100:0.2 >100:0.2%
Indication Error	GU	±1.5
Zero Error	GU	0.2
Working Temperature	℃	10℃ - 40℃
Storage Temperature	℃	-10℃ - 70℃
Humidity Range		Relative humidity less than 85%, without condensation
Power Adapter		Section 2 5 alkaline batteries/power adapter
Volume	mm	159x49x72
Weight	g	500
