WS2600

  • 1. WF2600 is a high precision, high stability, versatile spectrophotometer
    High to 18 light source mode,14 color sapce
    3. It uses LED light source,high capacity rechargeable lithium battery
    4. Full range aperture for universal color checking
    Product description: WS2600 with competitive price, high quality,high accuracy,easy to operate, easy to understand, affordable and so on. .
  • 留言咨询

Model

WS2300(Single Caliber)

WS2600(Switchable Caliber)

Geometric Conditions

d/8

Color Space

CIEL*a*b*CIEL*C*hHunter LAB

CIEL*a*b*CIEL*C*hCIEL*u*v*Hunter LABCIEXYZYxyReflectivityCMYKYI YellownessGanzR457 WhitenessTaube Whitenessz WhitenesssRGB

Standard Light Source

AD50D65F1F4、 F11TL84

ACD50D55D65D75F1F2CWF)、F3F4F5F6F7F8F9F10F11(TL84)F12(U30)

Light Source

Combined LED

Color Diff. Formula

△E*ab△E*HunterLab△E*CMC(2:1)

△E*ab△E*Ch△E*uv、 △E*Hunter△E*cmc(2:1)△E*cmc(1:1)△E*94△E*00△E*sRGB△E*BFD△E*FMCII

Measuring Caliber

Facula 4mm(Caliber Φ6mm)、 Facula 8mm(Caliber Φ11mm)Facula 16mm(Caliber Φ16mm)

Switchable: Facula 4mm(Caliber Φ6mm)& Facula 8mm(Caliber Φ11mm)            Single: Facula 16mm(Caliber Φ16mm)

SCI/SCE

SCI

SCI/SCE

Sensor Array

Line array CMOS@256 pixels

Spectral Way

Concave diffraction grating

Observer

CIE10°(1964)CIE2°(1931)

Wavelength coverage

400nm~700nm

Wavelength interval

10nm

Measuring interval

2.5 Second

Reflectance range

0%-200%

Repeated accuracy

△E0.07 take the deviation average after 30 times measuring the whiteboard

△E0.05 take the deviation average after 30 times measuring the whiteboard

Table Difference

△E0.4(Measure the RAL 12-color blocks)

△E0.3(Measure the RAL 12-color blocks)

Light source life

More than 50,000 hours

Battery power

Measuring more than 10000 times

Display screen

TFT true color 2.8inch@(16:9)

Data storage capacity

Storage Standard 100 groups



Sample 16,000 groups

Operating temperature

0℃-40℃32℉-104℉

Storage temperature

-20℃-50℃-4℉-122℉

Working humidity

Relative humidity less than 85%,without condensation

G.W

5.5kgs

Package Size

39*34*20cm

Standard accessories

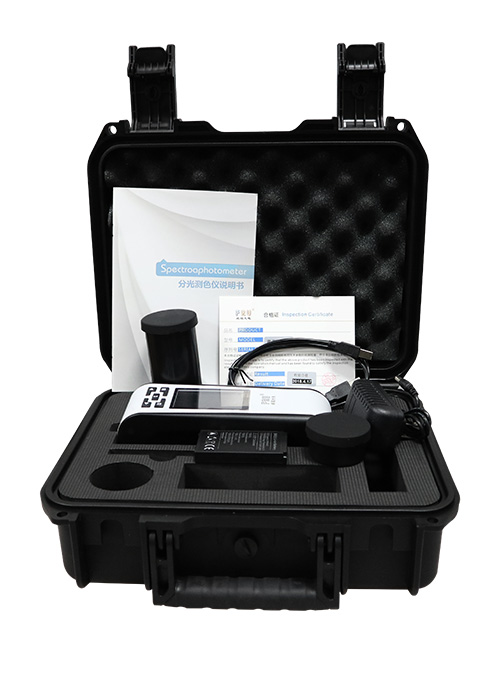

Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software

Optional accessories

Software(Advanced Version), Micro printer, Locating block
