WS70C-8(for car painting)

  • WS70C-8(for car painting)
  • WS70C-8(for car painting)
  • WS70C-8(for car painting)
  • WS70C-8(for car painting)
  • WS70C-8(for car painting)
WS70C-8(for car painting)WS70C-8(for car painting)WS70C-8(for car painting)WS70C-8(for car painting)WS70C-8(for car painting)

WS70C-8(for car painting)

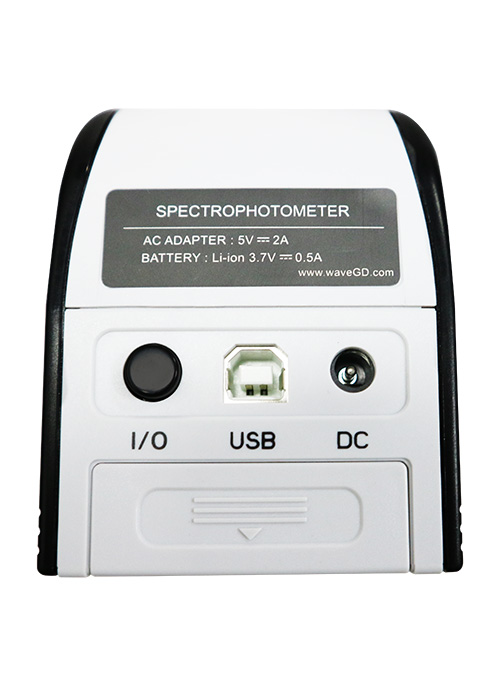

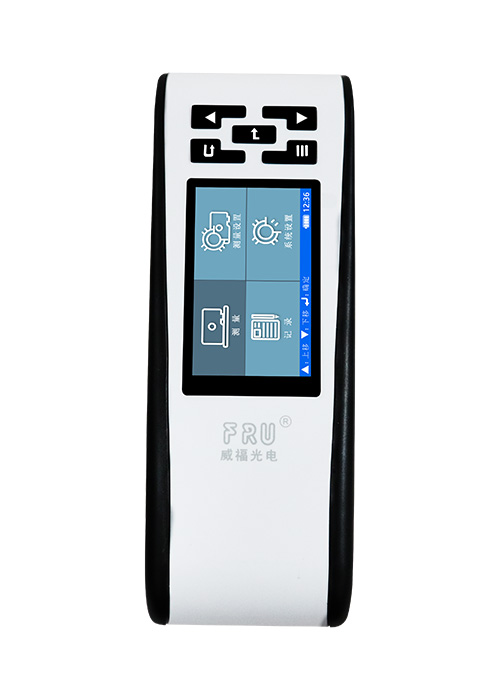

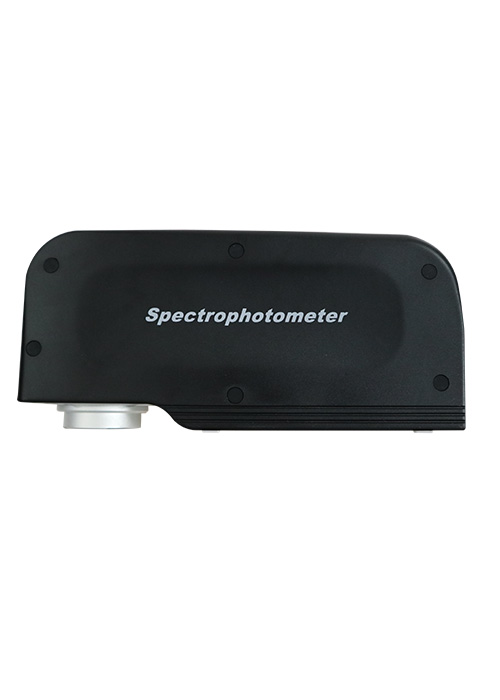

  • 1. WF70C is a high precision, high stability, versatile spectrophotometer
    2. It has 4 measuring light sources (A、C、D65、F2、), two color modes (CIE△E * ab、 CIE△E * Ch)
    3. It uses LED light source,high capacity rechargeable lithium battery
    4. 8mm aperature used for flat surface measuring
    Product description: WS70C is specially designed for auto industry for metal car painting measuring,with competitive price, high quality,high accuracy,easy to operate, easy to understand, affordable and so on. .
  • 留言咨询

The WS70C is our latest launched spectrophotometer,it adopts cutting-edge technology with high quality high accuracy specially used in auto mobile industry for car painting color measuring.




Model WS70C
Geometric Conditions CIE recommended lighting reception method:45/0
Color Space CIEL*a*b, CIEL*C*h, Yxy
Standard Light Source A, C, D65, F2,(CWF)

Color Difference Formula

Light Source Combination LED
Sensor Array CCD@2048 Pixels
Spectral Way Diffraction grating
Measuring Caliber 8mm
Observer CIE10 degree standard observer, CIE2 degree standard observer
Wavelength Coverage 400-700nm
Wavelength Interval 10nm
Measuring Interval 1.5 seconds
Measuring Range L: 0-100
Repeated Accuracy Delta E<0.08(take the devitation average after 30 times measuring the white board)
Table Difference Delta E<0.5(measure the X-Rite 24-color card)
Battery Power Measuring 10000 times
Data Storage Capacity Storage standard sample 100
Storage Sample 16000
Light Source Life Over 20000hrs
Display Screen TFT true color 2.8 inch@16:9
Size 199*68*90mm
Exterior Package Size 380*325*185mm
Weight 2.7kgs
Humidity Temperature -10 degree to 40 degree
Storage Temperature -20 degree to 50 degree
Working Humidity Relative humidity less than 85%,without condensation

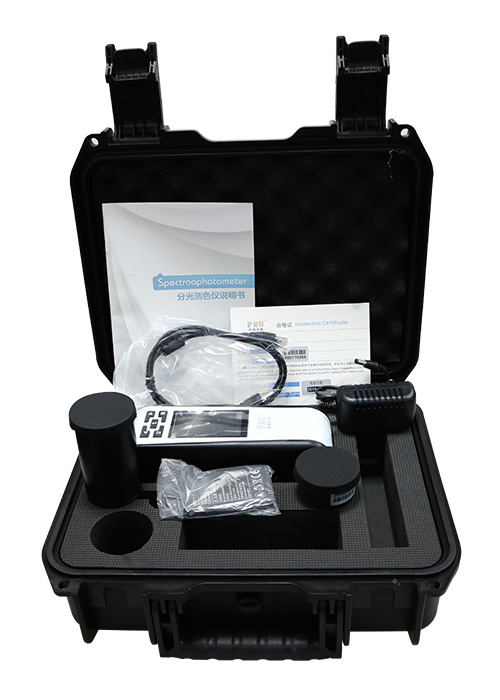

Standard Accessories Power Adapter,standard white board,standard black cavity,lithium battery,brochure
Optional Accessories Software,Micro printer
