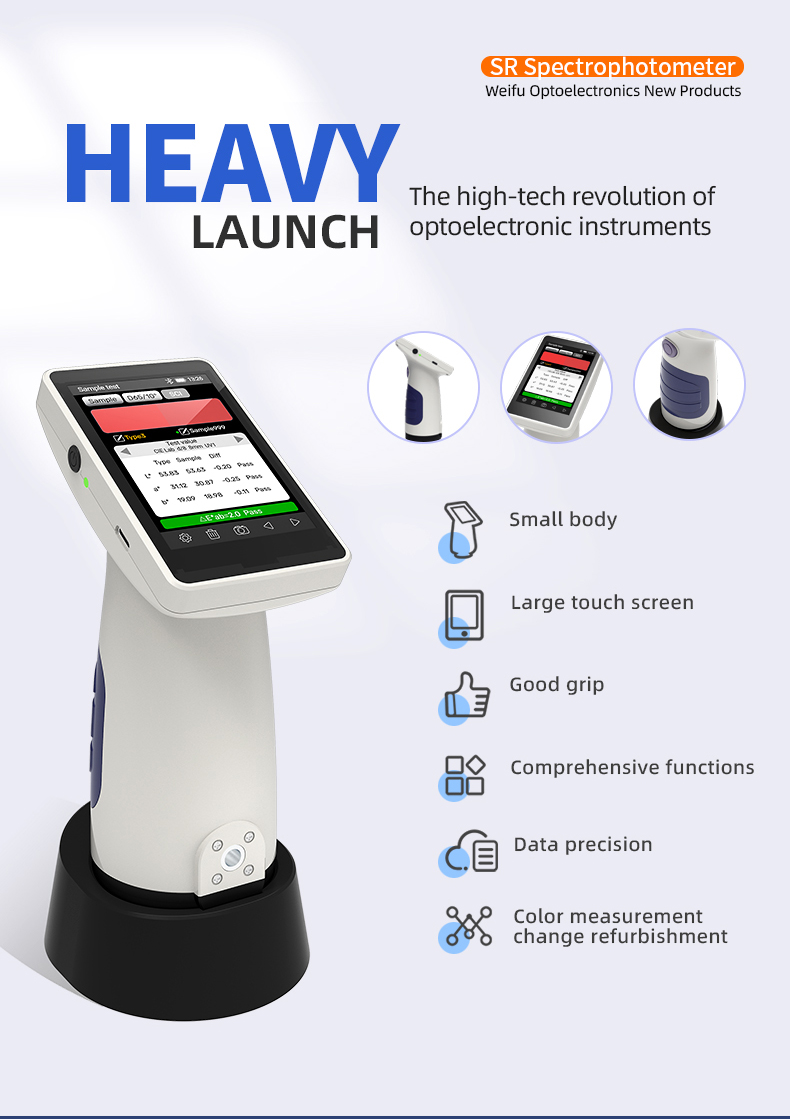

SR series spectrophotometer

SR series spectrophotometer

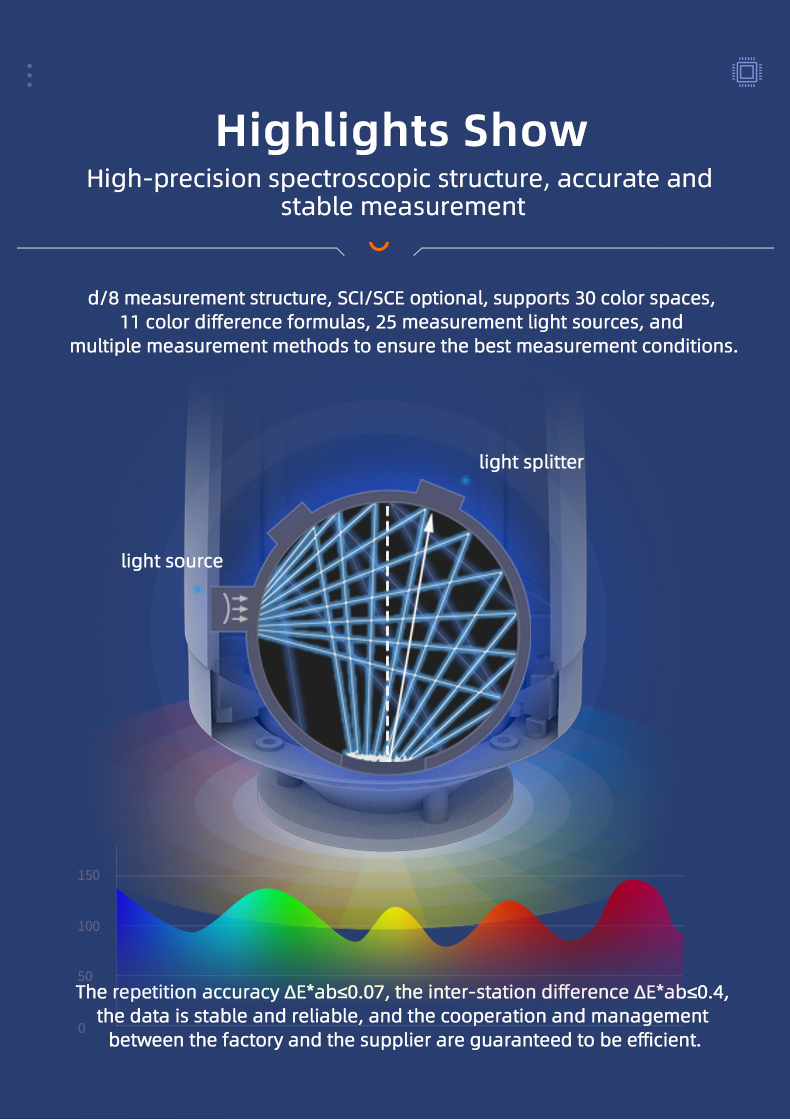

High-precision spectroscopic structure, accurate and stable measurement

d/8 measurement structure, SCI/SCE optional, supports 30 color spaces, 11 color difference formulas, 25 measurement light sources, and multiple measurement methods to ensure the best measurement conditions.

The repetition accuracy ΔE*ab≤0.07, the inter-station difference ΔE*ab≤0.4, the data is stable and reliable, and the cooperation and management between the factory and the supplier are guaranteed to be efficient.

Specifications:

Item	Basic version			Professional version
Model	SR210	SR211	SR218	SR220	SR221	SR228
Caliber	Φ8mm	Φ4mm	Φ4mm	Φ8mm	Φ4mm	Φ4mm
			Φ8mm			Φ8mm
SCI/SCE	SCI(lnclude specular light)			SCI(lnclude specular light)/ SCE(Exclude specular light) Can test at the same time
Light type	Full spectrum LED			Full spectrum LED/ Dual UV
Fix position	Visual			Camera positioning
Repeated accuracy	ΔE*ab<0.07			ΔE*ab<0.03
Color space	CIE - Lab、CIE - Lch、Luv、Hunter - Lab、XYZ、Yxy、sRGB、DINLAB99、DENSITY(A)C,M,Y,K、DENSITY(T)C,M,Y,K、DENSITY(E)C,M,Y,K、DENSITY(M) C,M,Y,K、DENSITY(I)C,M,Y, K、Mun sells Reflects nce、Black ne ss、Yi yellownessx Metamerisms Covering powers Coloring power / strength / dye strength、Color fastnessx Taube whiteness、Berger whiteness、TAPPI whiteness、Cross whiteness、Stephensen whiteness、Ganz whiteness、Hunter whiteness、ASTM whiteness、CIE whiteness、AATCC whiteness、R457 / iso2470 whiteness、GB / t17644 whiteness
Color difference formula	ΔE*ab、ΔE*ch、ΔE*uv、ΔE*Hu nterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99
Light source	As C、D50、D55、D65、D75、Fl、F2、F3、F4、F5、F6、F7、F8、F9、F10、Fll、F12、 CWF、U30、U35、DLF、NBF、TL83、TL84
Observer angle	10° (CIE1964) /2° (CIE1931)
Wavelength	Interval:! 0nm、Range: 400nm-700nm
Reflectivity	Range： 0-200%、Accuracy： 0.01%
Sensor	CMOS Sensor
Geometric	d/8、40mm Integratingsphere

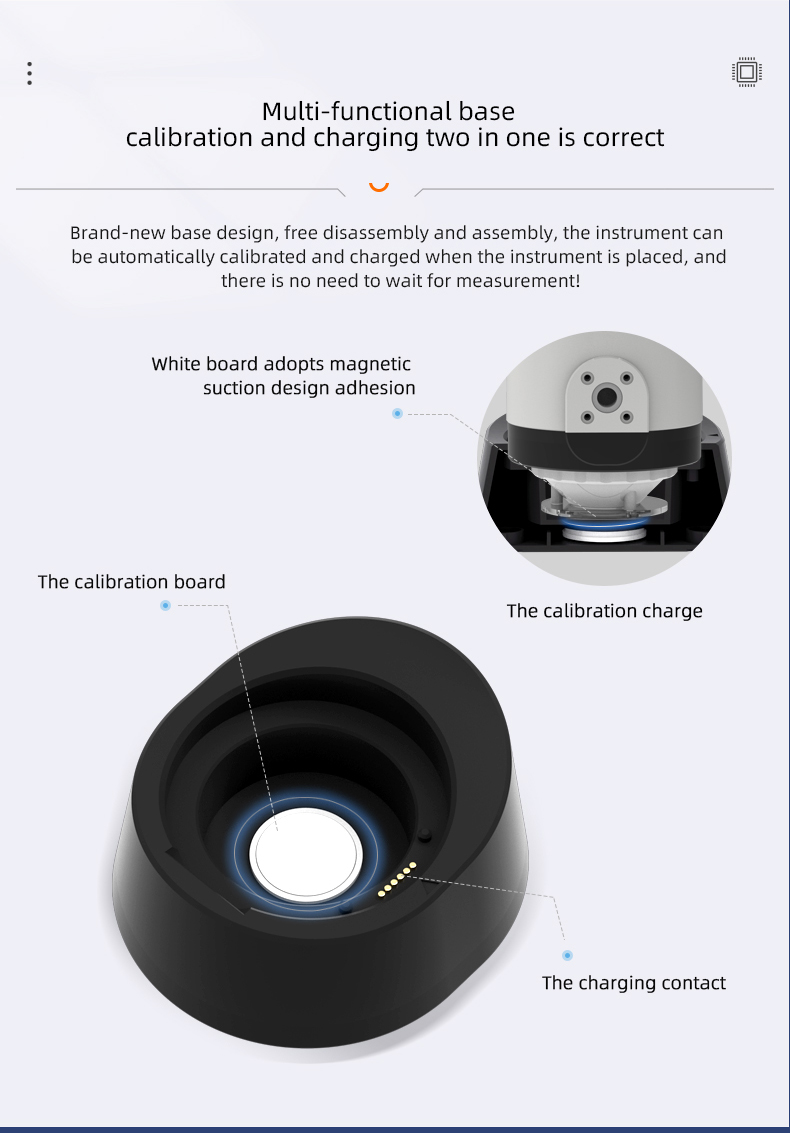

Calibrati on	Automatic
Certificate	Pass the certificate
Display Solution	0.01
IIA	ΔE*ab<0.4 (RAL 12 Average for 12 Color blocks)
Test speed	1.0s、2.0s(SCI/SCE test at the same time)

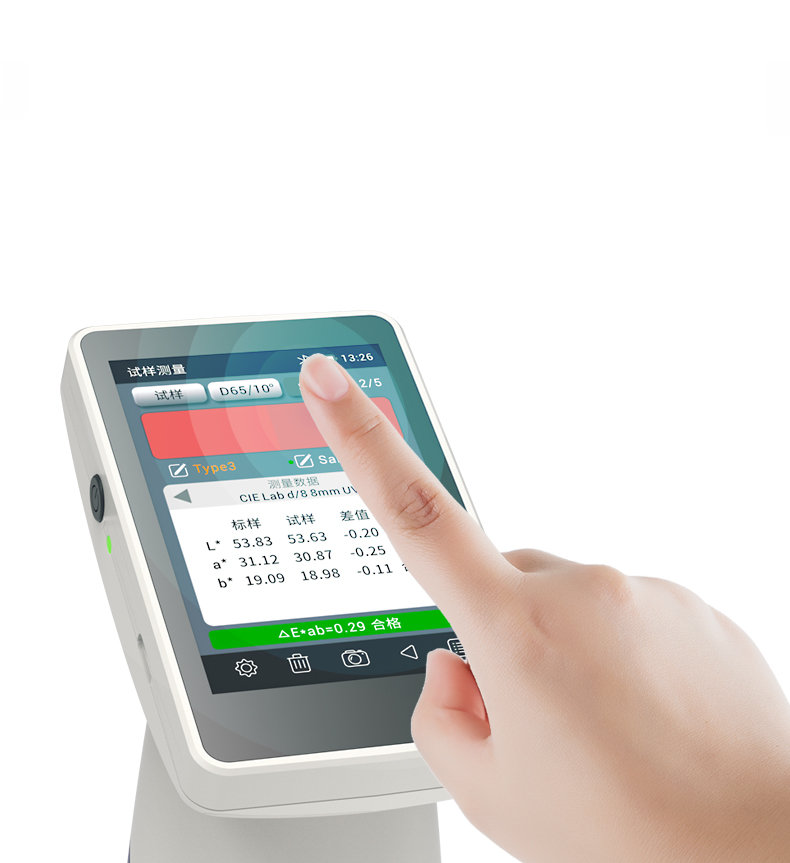

Operatio n	Capacitive touch screen

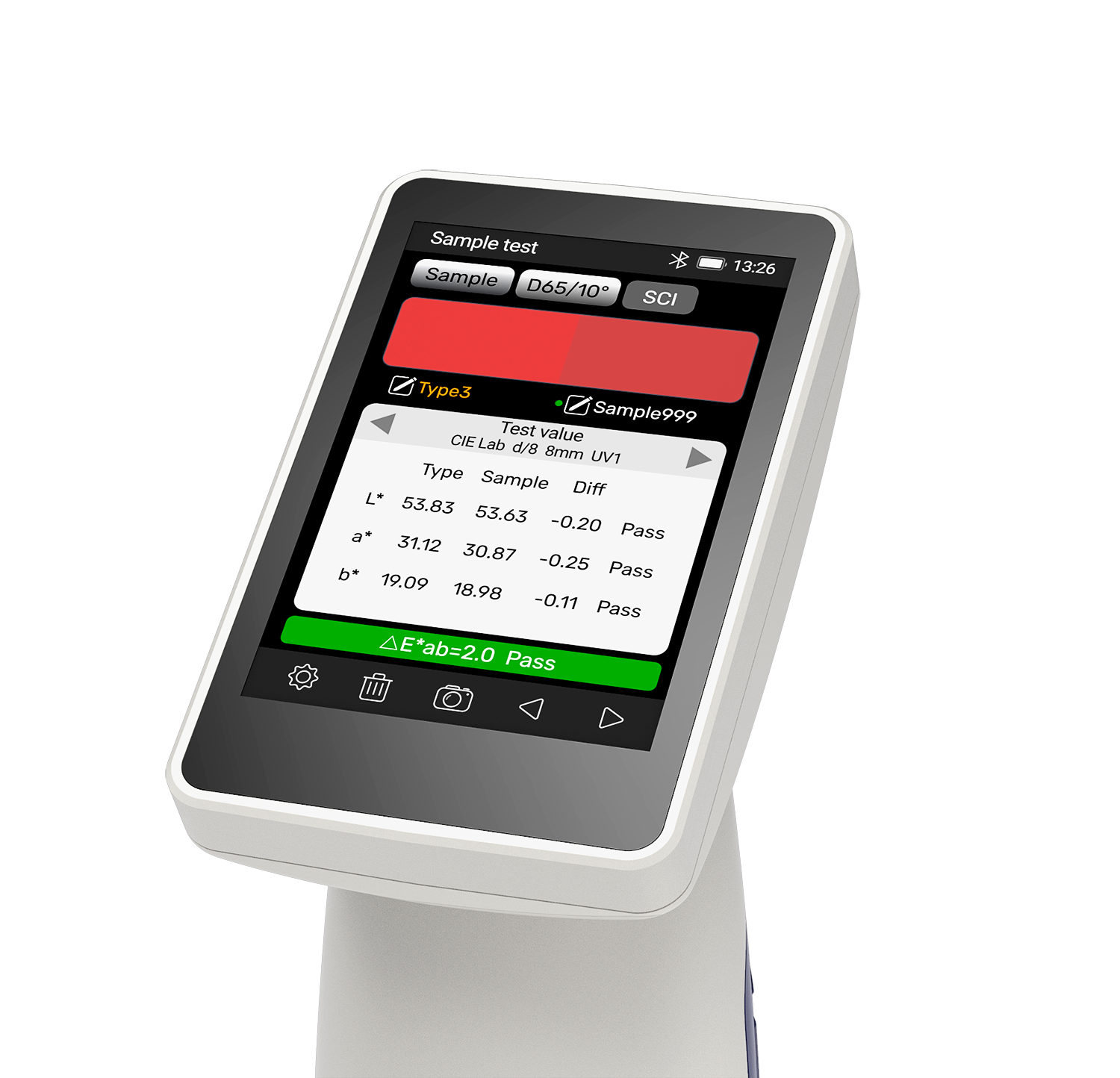

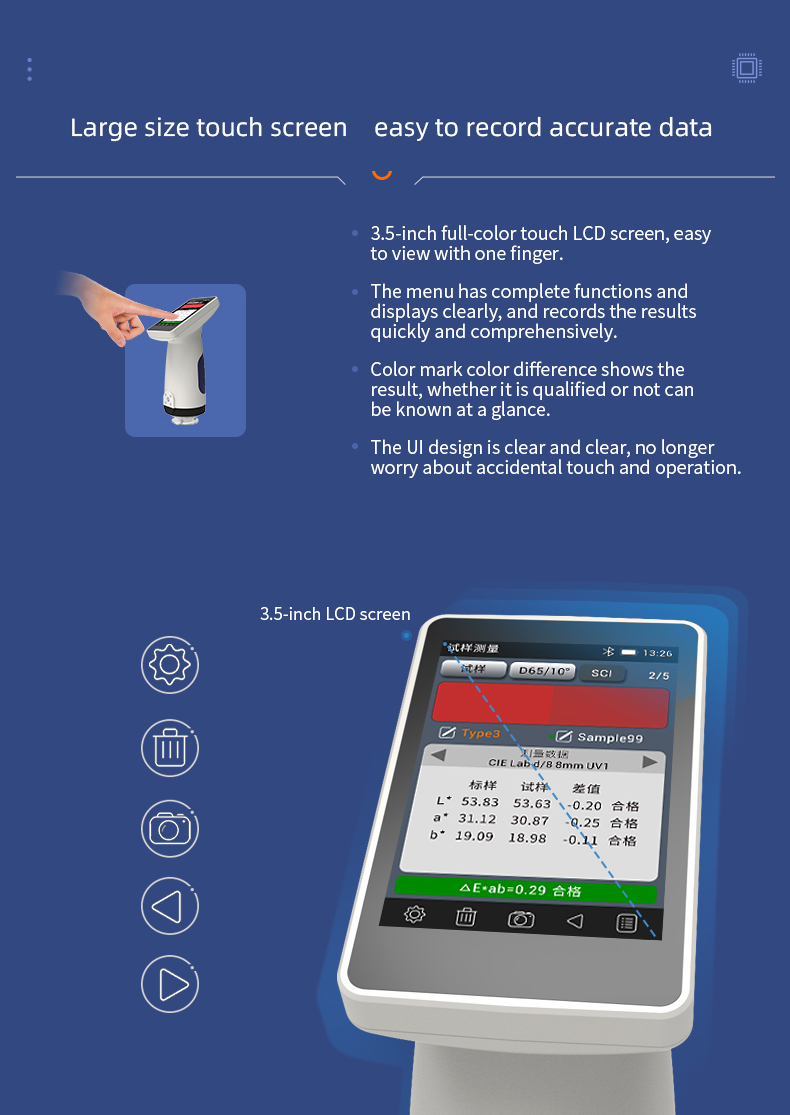

Display	3.5 inch Full color LCD
Battery	Polymer battery, Continuous test for 10000 times with fully charged
Interface	Type C/ Bluetooth
Language	简体中文、繁体中文、English
APP support	Android/IOS/Windows
Storage	The fuselage stores 8000 pieces of data, and supports app mass storage
Dimension	184x93x62mm (Without base)
Weight	320g (Without base)
Packing List	Instrument、Calibrate base、Type c cable、Charger、User's manual、Warranty card Base fixing piece、2 calibres (single calibre version)、4 calibres (double calibre version)
