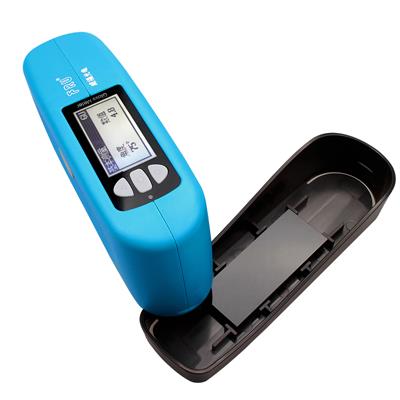

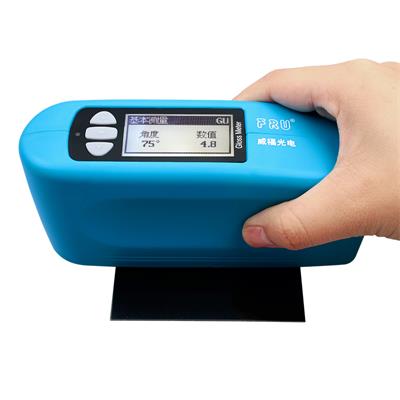

WG75 (for paper)

WG75 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on paper material.



Gloss Meter WG75 function description

(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.

(2) Manually entering standard samples gloss data;

(3) Humanized design, good man-machine communication interface;

(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;

(6) Data browsing and viewing function;

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;



Attachment Description

(1) Power adapter: standard + 5V, 2A external power supply;

(2) Standard board: provide calibration criterion.



WG75 specification



Specification	Unit	Single Gloss Meter
Measuring Angle	degree	75°
Measuring Range	GU	75°: 0-1000
Measuring Spot	mm	75°: 9x15
Division Value	GU	0-1000: 0.1
Repeatability	GU	0-100:0.2 >100:0.2%
Indication Error	GU	±1.5
Zero Error	GU	0.2
Working Temperature	℃	10℃ - 40℃
Storage Temperature	℃	-10℃ - 70℃
Humidity Range		Relative humidity less than 85%, without condensation
Power Adapter		Section 2 5 alkaline batteries/power adapter
Volume	mm	159x49x72
Weight	g	500
