WF30-4(for arc cambered surface)

  • 1. WF30 has three measuring light sources (D50, D65 and F11);
    2. two color modes (CIE1976LAB, CIELCH), a color difference formula (△ E * ab);
    3. add mini-printers to do real-time printing measurement data;
    4. It can be used with standard

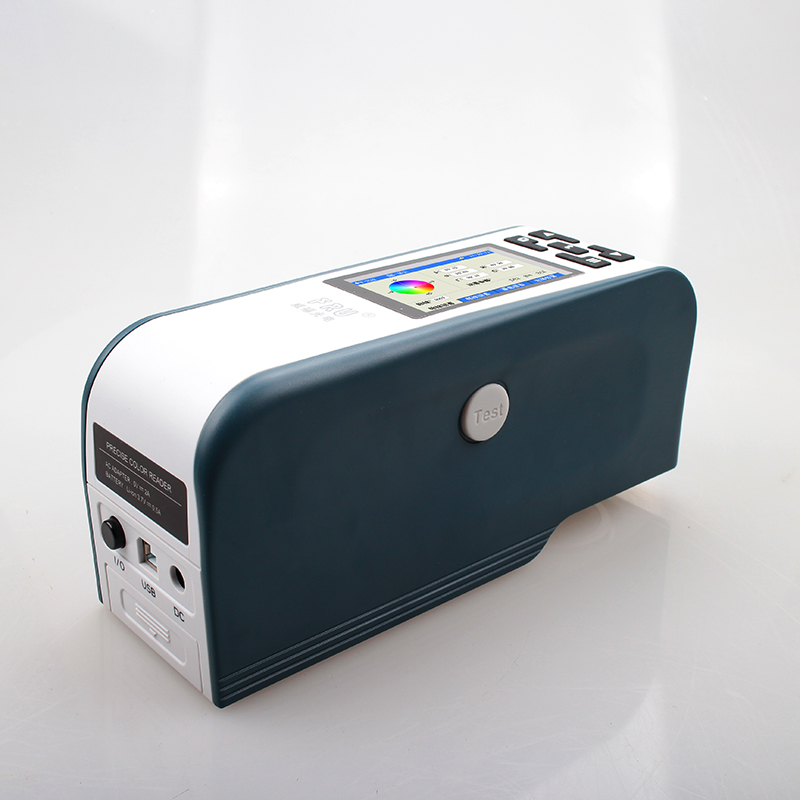

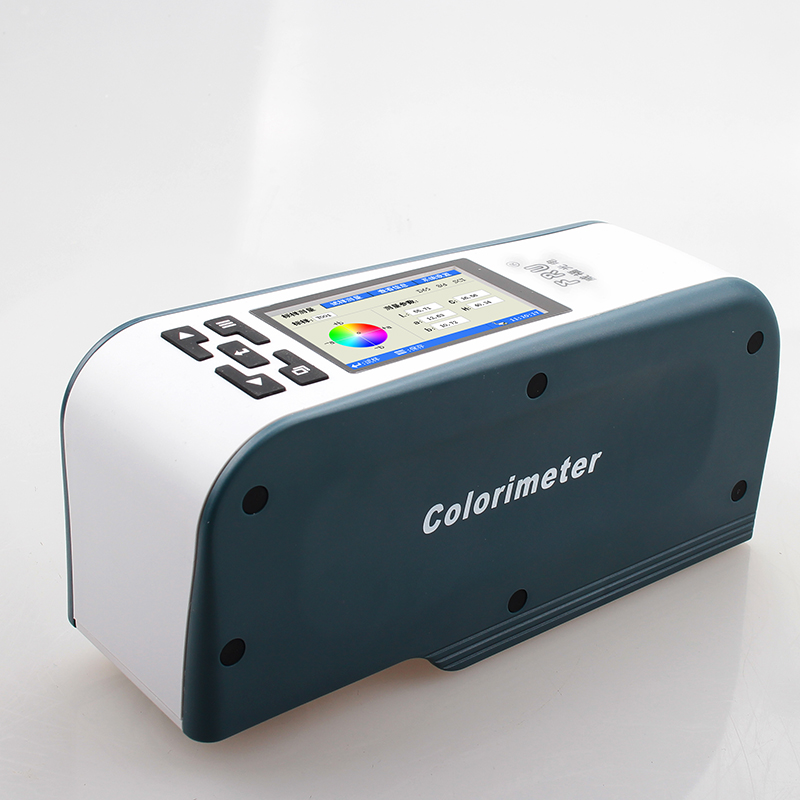

    Product description: WF30 colorimeter is a high precision, high stability, versatile colorimeter. It has a greater capacity of data storage space, you also can add mini-printers.
  • 留言咨询

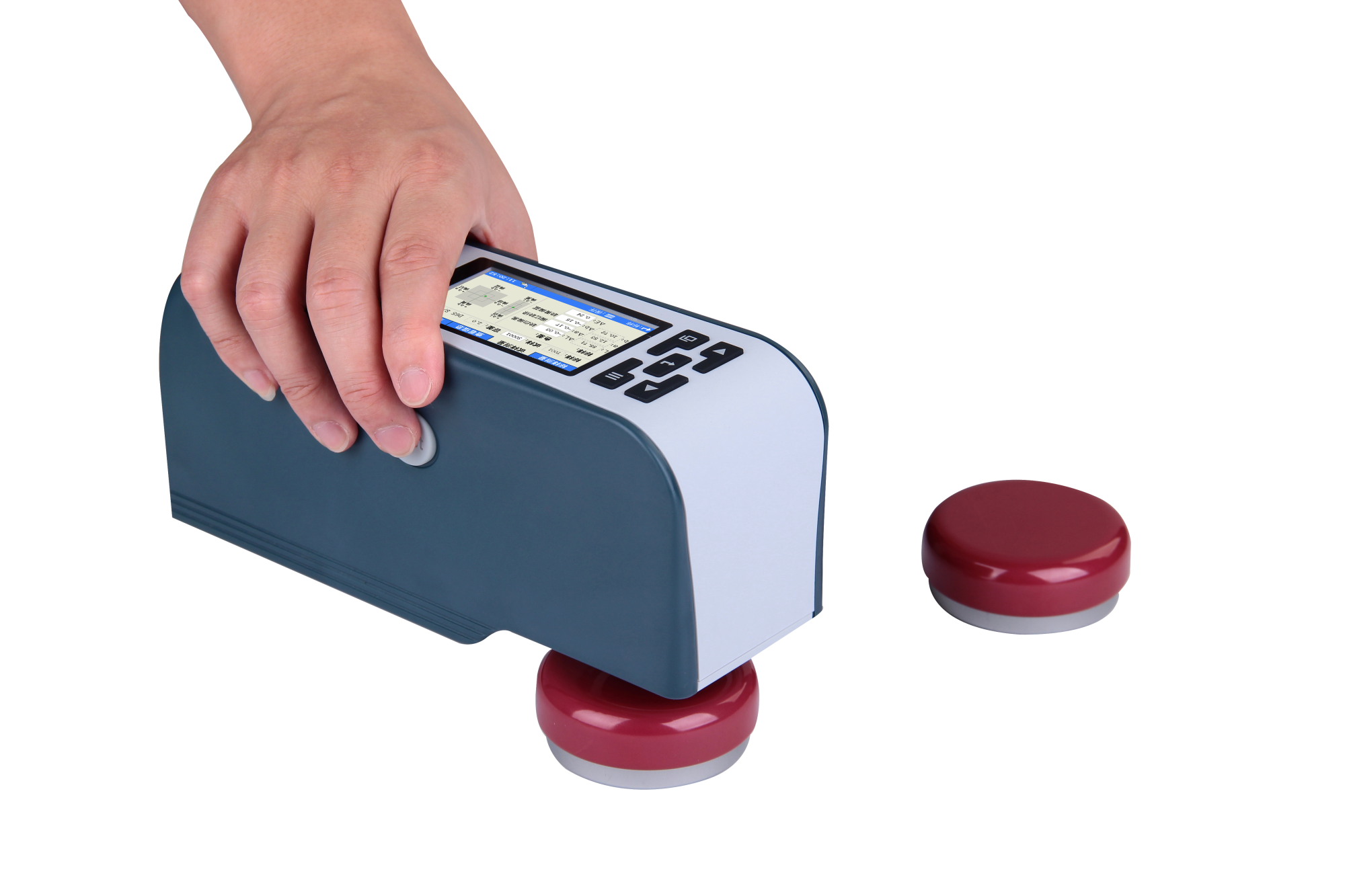

Instrument power-on self-testing, automatic black-and-white plate correction to avoid the tedious manual calibration step, that is the boot that the good seal better protection whiteboard is not polluted, to ensure that each correction has good consistency.





Model WF30
Display Mode CIELAB、CIELCH
Color Difference Formula △E*ab
Illumination Condition CIE Recommendation：8/d
Light Source LED blue excitation
Sensor Photodiode array
Measurement Caliber φ4mm/φ8mm/φ16mm Alternative
Measurement Condition Observer：CIE 10° Standard observer
Light source: D50 D65 F11(TL84)
Contain light way：SCI SCE
Measurement Range L: 0 to 100
Repeated Accuracy △E<0.05 (take the deviation average after 30 times measuring the whiteboard)
Table Difference △E<0.2
Measurement Interval 0.5 Sec.
Storage Capacity Type sample data : 100 with testing sample data: 200
Language Patterns English/Simplified Chinese
Battery Charging Time 8 hrs
Battery Li-ion battery, 5000 times Measurement
Lifetime of Bulb 5 years more than 1.6 million measurements
Display Screen TFT true color 2.8inch@(16:9) Resolution ratio:400x240

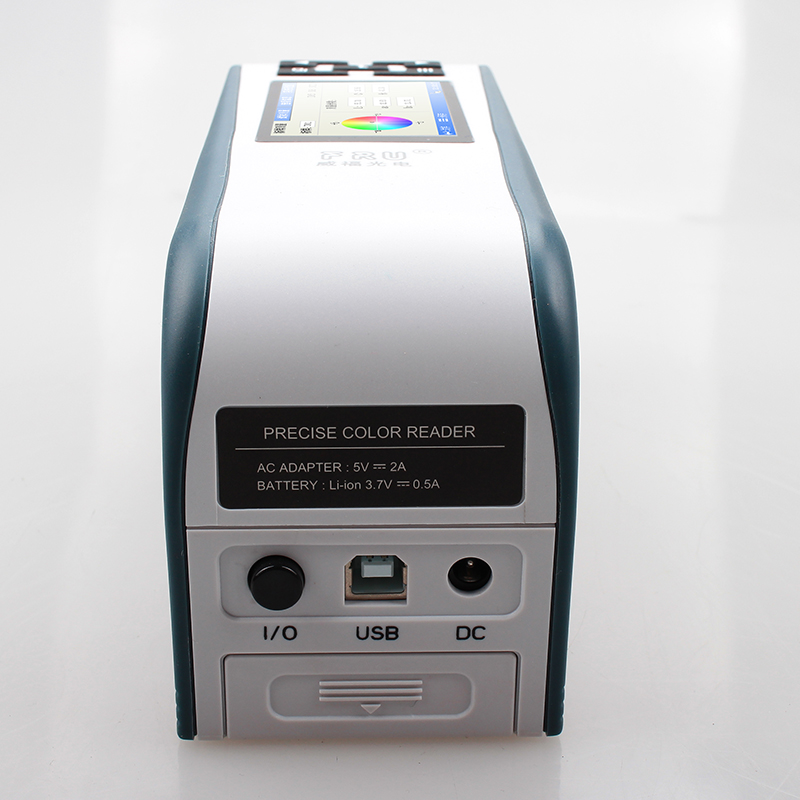

Interface of External USB2.0 (USB-B型)- data communication with 《color analysis system》software RS-232 (115200bps)- connected with micro printer
Working Temperature Range 0℃-40℃（32℉-104℉）
Storage Temperature Range -20℃-50℃（-4℉-122℉）
Humidity Range Relative humidity less than 85%,without condensation
Weight 700g
Size 199*68*90mm
Size of Exterior Package 400*240*340mm
Standard Accessories 3000mAH Li-ion battery/AC adapter/USB Data line/CD《Color analysis software》/Usermanual/Warranty card
Optional Accessories Flour measuring device/Liquid measuring device/Micro printer
